Things About Float 1

Introduction About float

The float attribute can move the element to the right or left until its outer edge touches the border of its container or another floated element. The floated element will get rid of the document flow, and will not take any space in the flow. So other elements will behave as if the floated element doesn't exist. That's why the float attribute can affect the page layout. To put it in another way, it lets the block-level elements ignore the floated elements and lets the inline elements wrap around the floated elements.

The characteristics of float

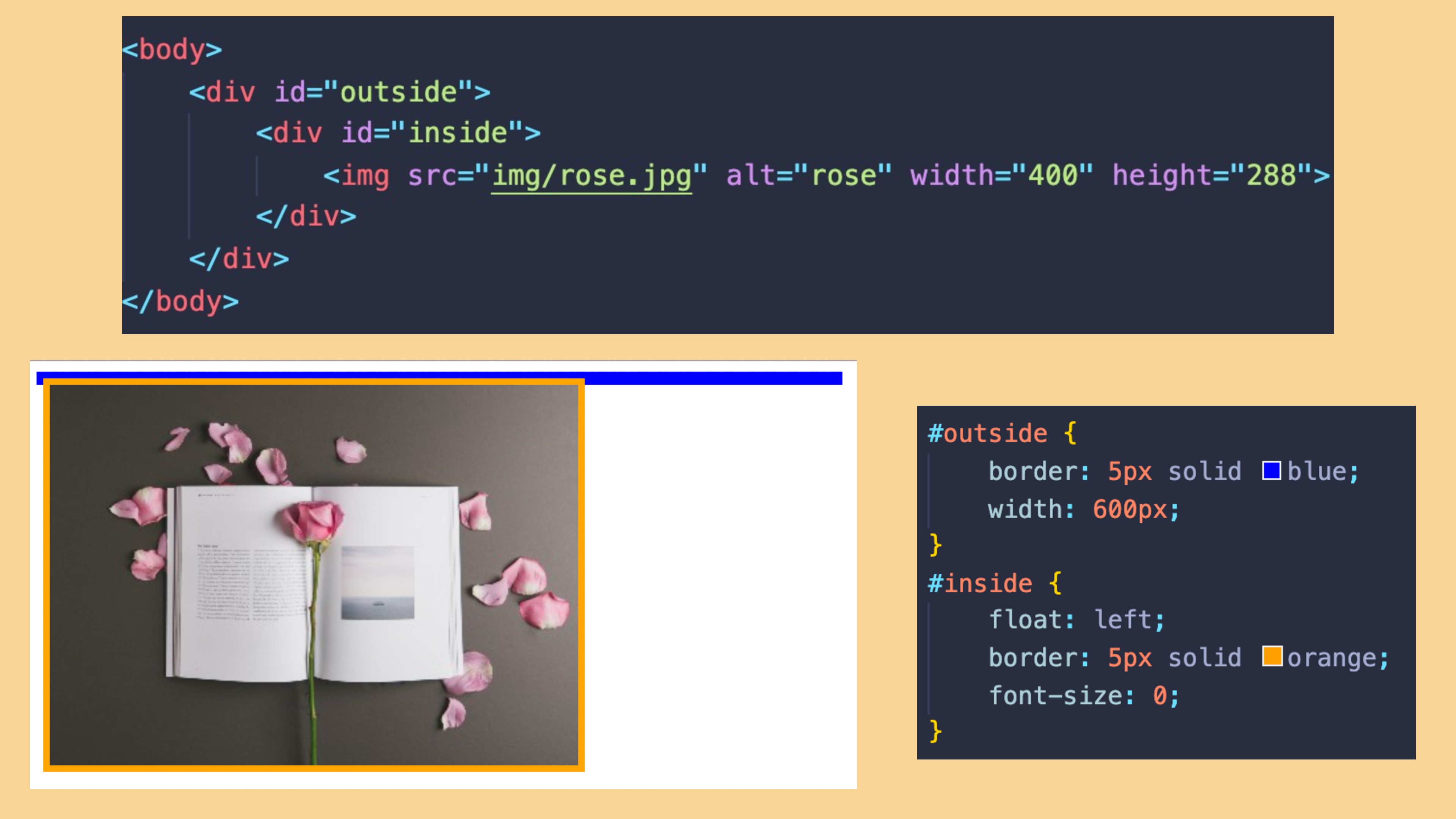

Wrap

When the width of the parent element is bigger than the floated child element, the width of the floated child element equals to the width of the image in this example.

Adaptive

If we add some text after the floated image, the width of floated child element will expand to the width of its parent element, which is 600px in this example.

Height Collapse

This is a very important feature of float. As you can see from Fig 1, the height of the div#outside is 0 and does not expand according to the div#inside. When the div#inside is floated, its height is considered to be 0, thus the content inside of div#outside is 0. It seems like there's no child element inside of div#outside.

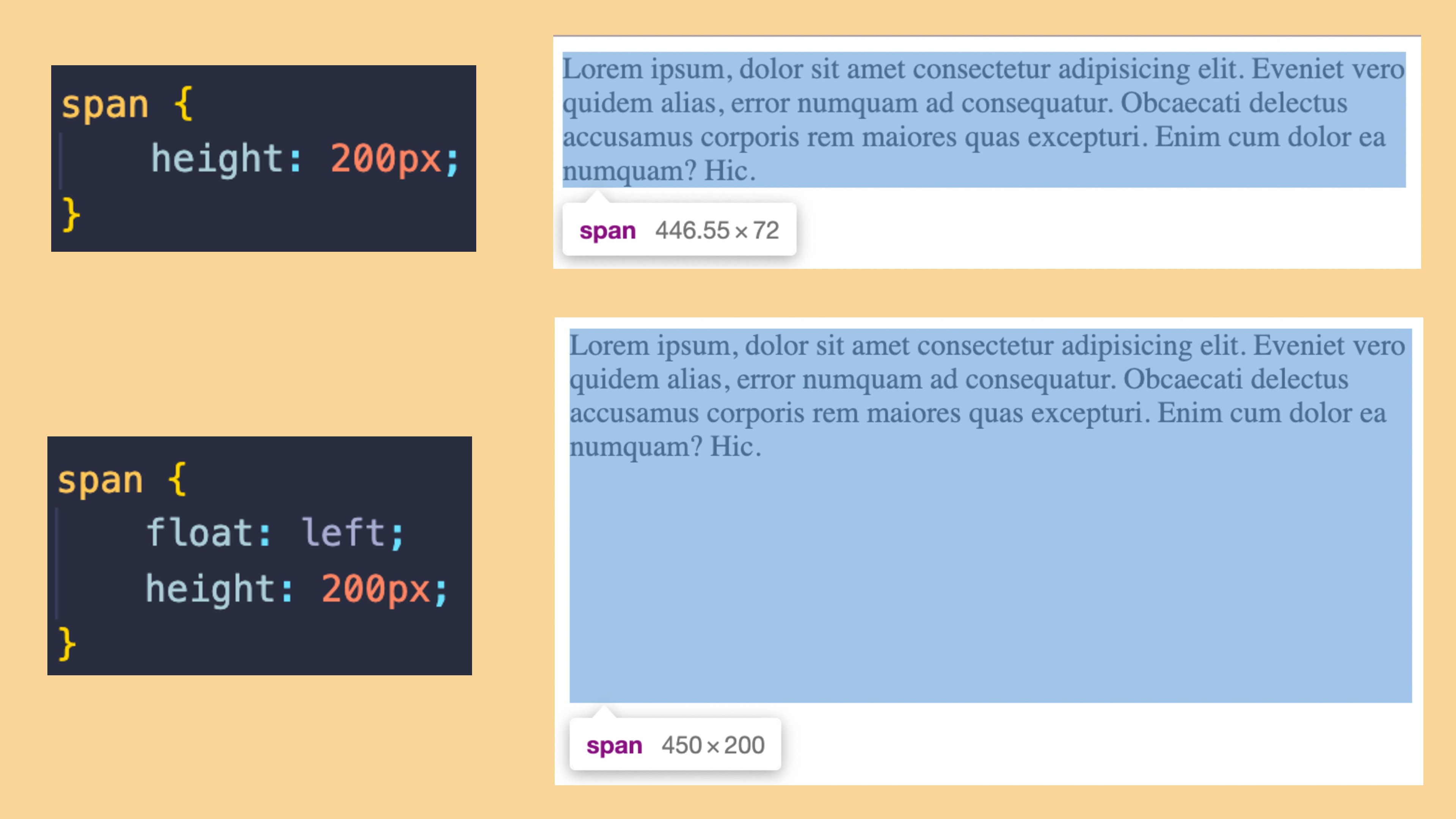

Blocklize

You can set the height and width of the floated element even if it's an inline element. However, this floated inline element won't behave like a block-level element.

No overlap of margins

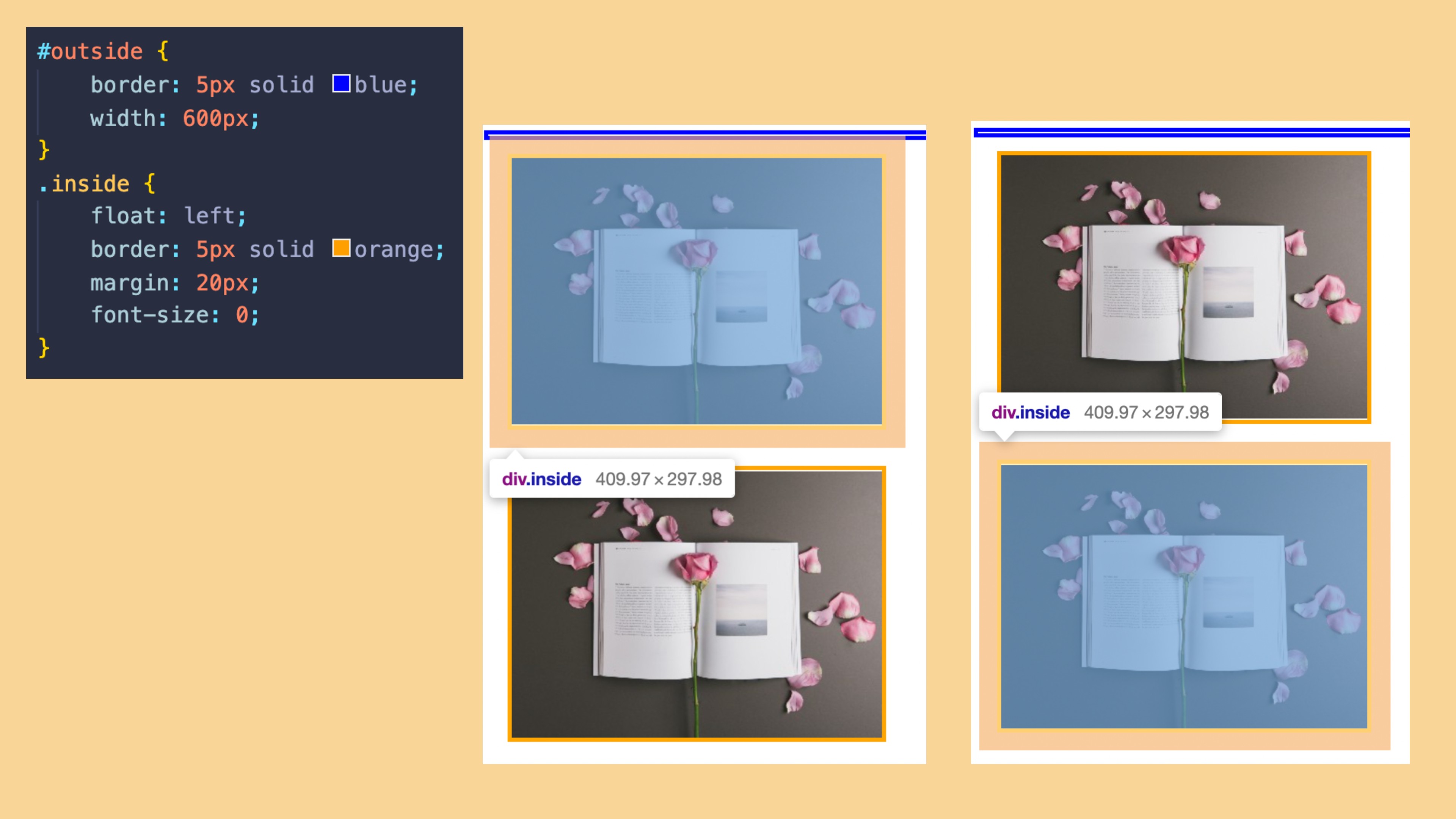

float characteristic - no overlap margin — Fig 4. Float characteristics - no overlap margin
*Hover on the image to enlarge.

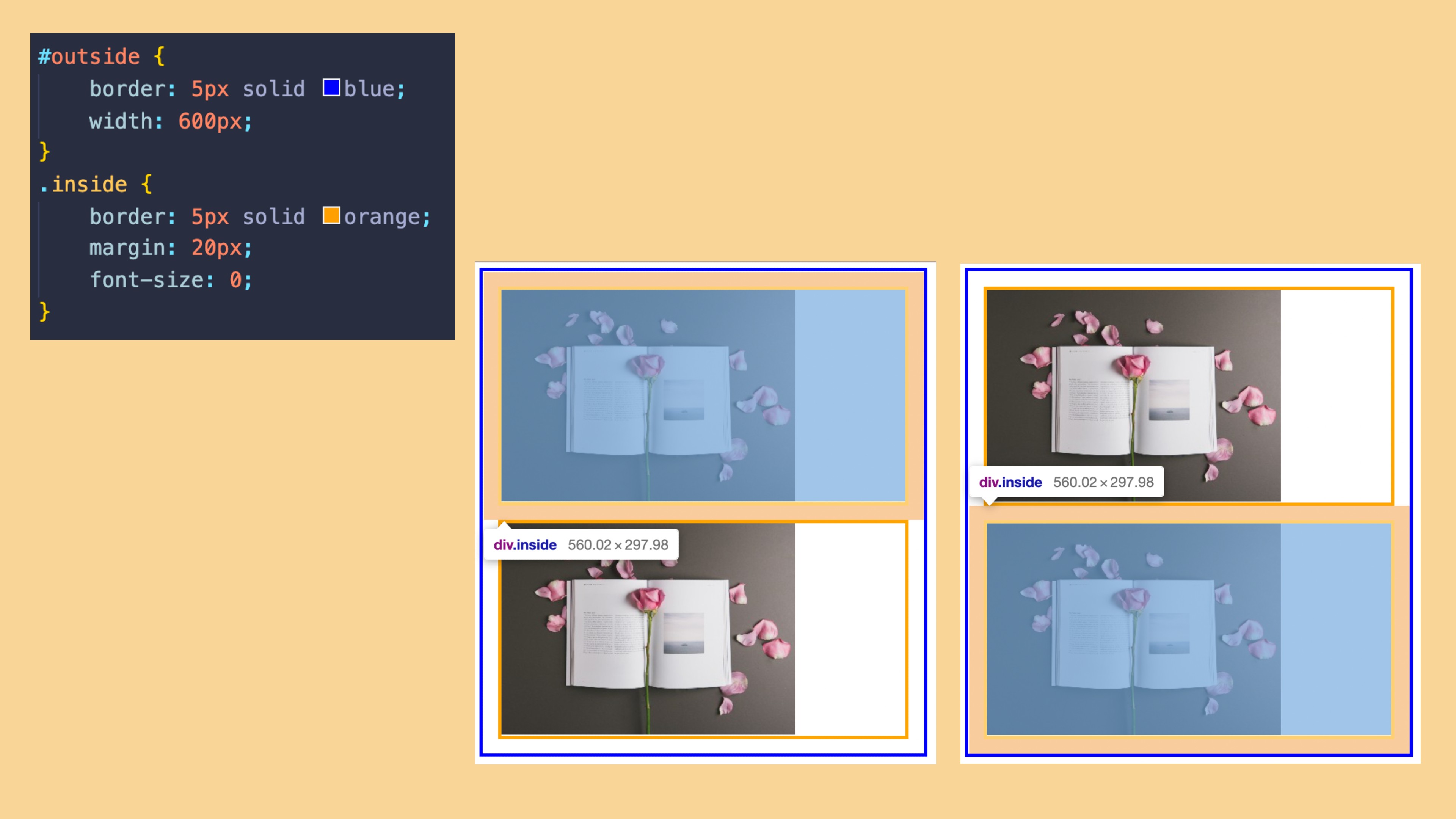

no float - overlap margin — Fig 5. No float - overlap margin
*Hover on the image to enlarge.

The element with the float attribute does not have any margin overlap, which is different from the margin overlap of normal element.

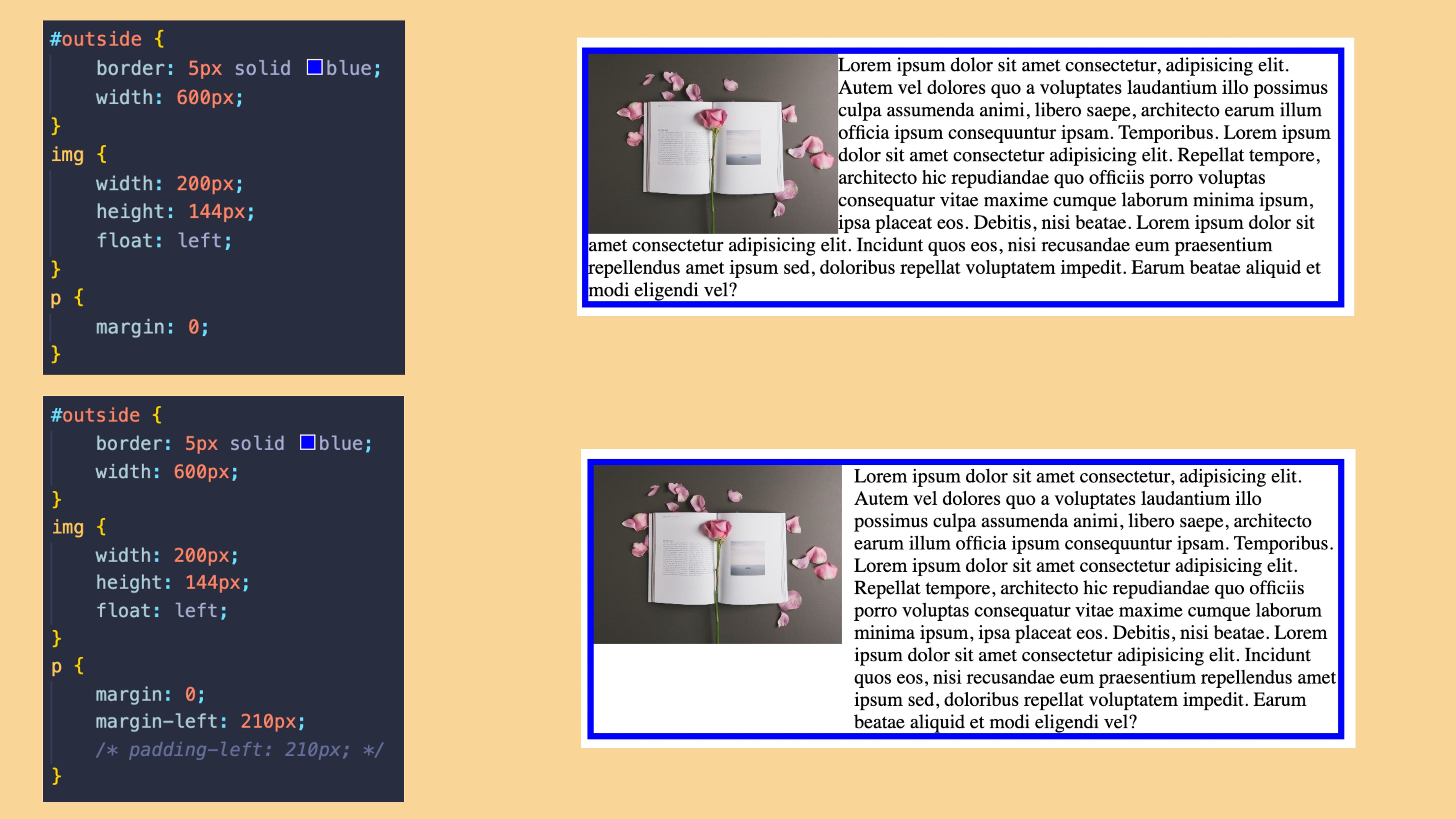

The use of float - Text-wrap

We can use the feature of float to disrupt the normal document flow to implement some text wrapping layout.

The Enemy of float -- clear

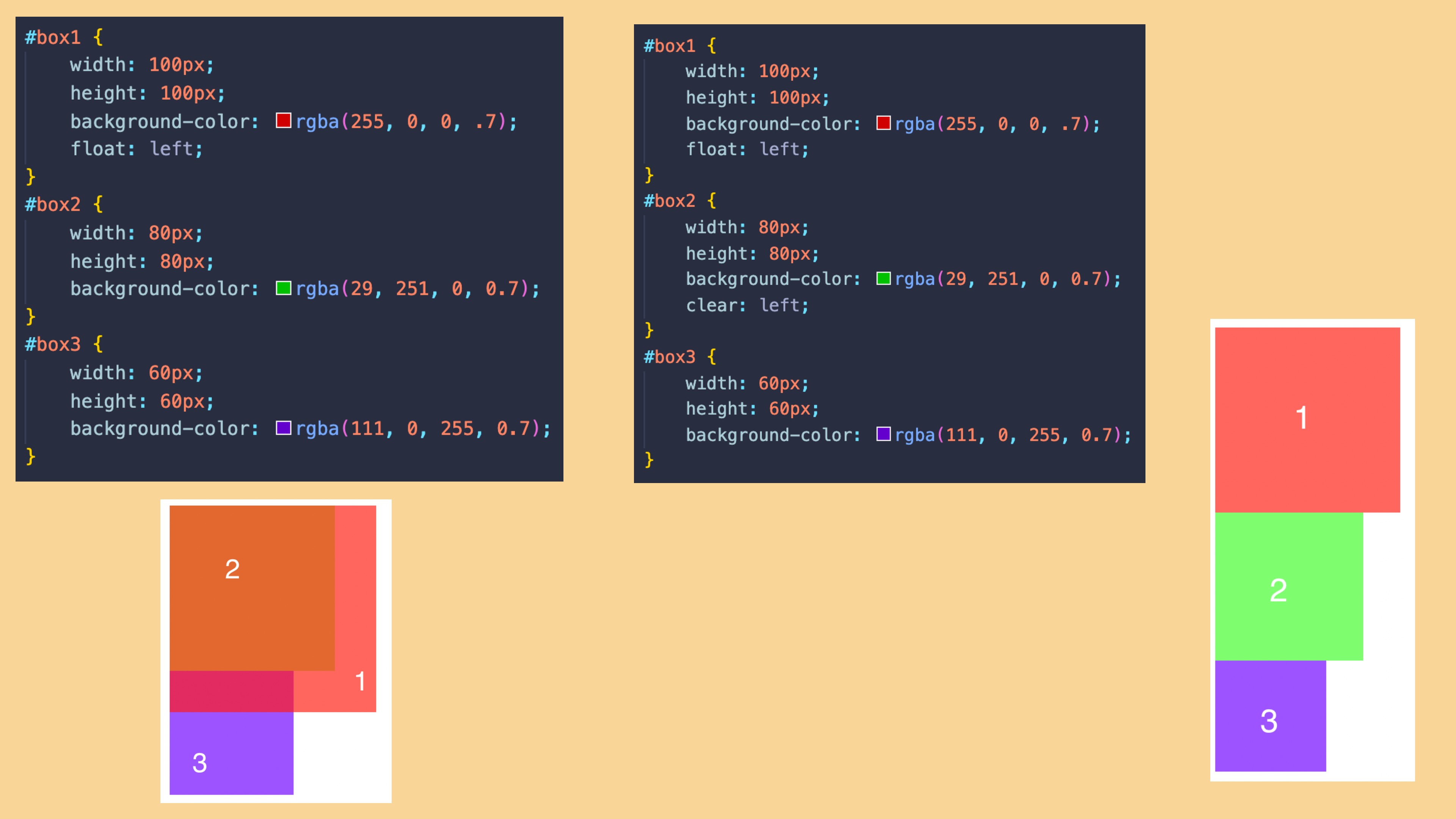

We can use clear to solve the height collapse problem when we use float. You can set clear with none, left, right or both.

It's worth noting that when we use clear (not set to none), the float is still there and has not been cleared! Only the effects of floating can be removed.

Value	Explanation
none	The default value, allowing floating objects on both sides
left	Floating objects on the left are not allowed
right	No floating objects on the right are allowed
both	Floating objects are not allowed on both sides

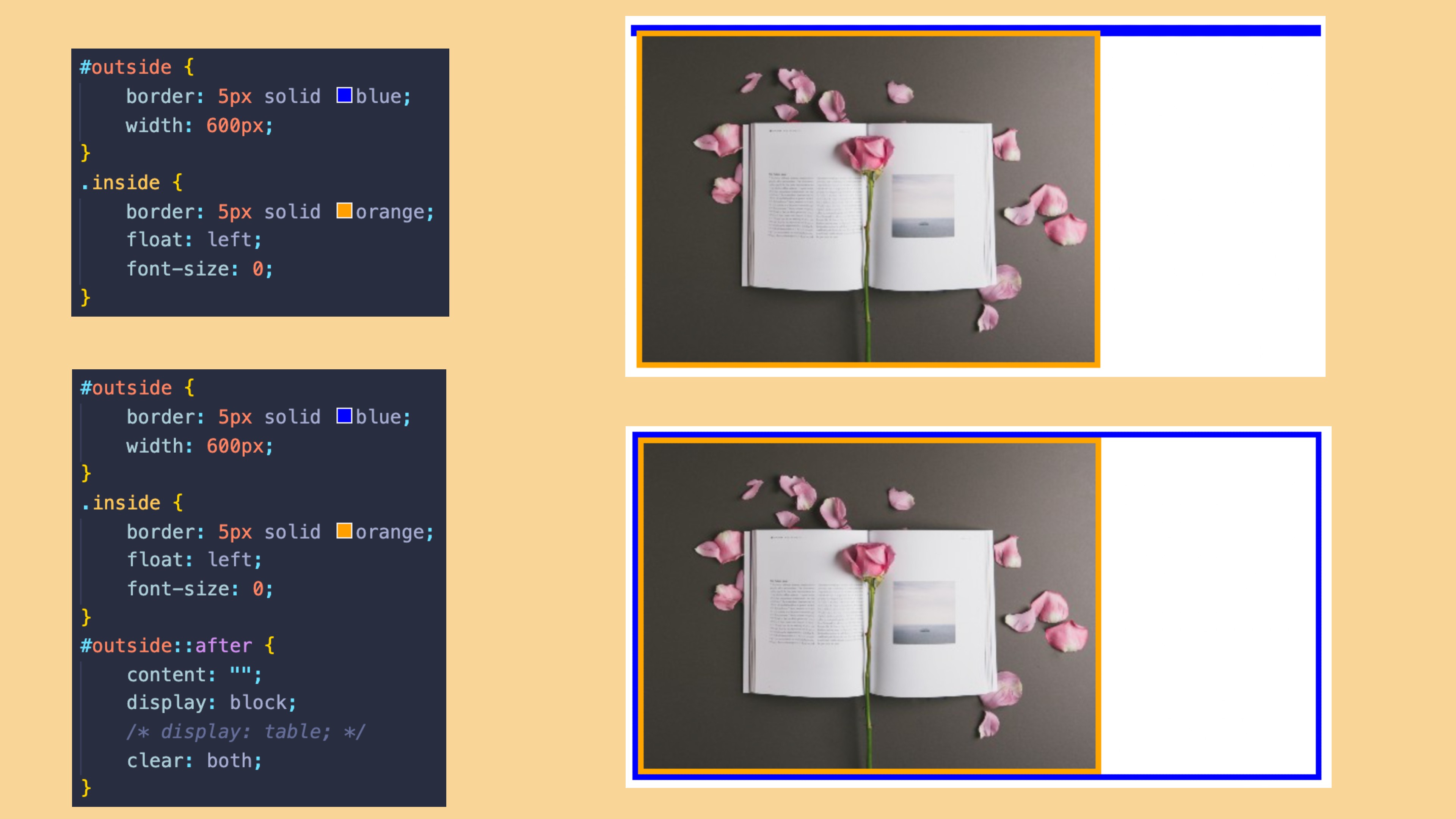

clearfix

If an element contains only floated elements, its height collapses to nothing. If you want it to always be able to resize, so that it contains floating elements inside it, you need to self-clear its children. This is called clearfix, and one way to do it is to add clear to a replaced ::after pseudo-element on it. (clear - CSS, MDN Web Docs)

Do You Really Know About the Float?

The float attribute is commonly used in CSS. But, if it is used improperly, unexpected effects will occur. That's why I choose this topic for the page.
